Canon SX7 Mark II

The REALiS is about as bright and powerful as compact projectors get.

July 30, 2010
Our editors review and recommend products to help you buy the stuff you need. If you make a purchase by clicking one of our links, we may earn a small share of the revenue. Our picks and opinions are independent from any business incentives.

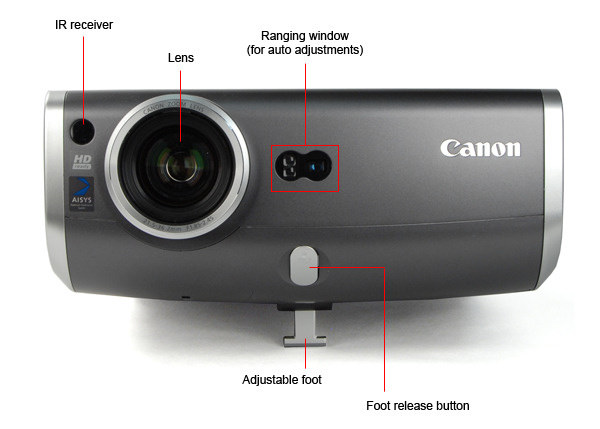

Front

  • The Canon SX7 Mark II is a relatively high-end LCoS projector.
  • Measures 10.6 × 4.6 × 13.4 inches and 10.6 pounds—not the most portable projector.
Front Callout

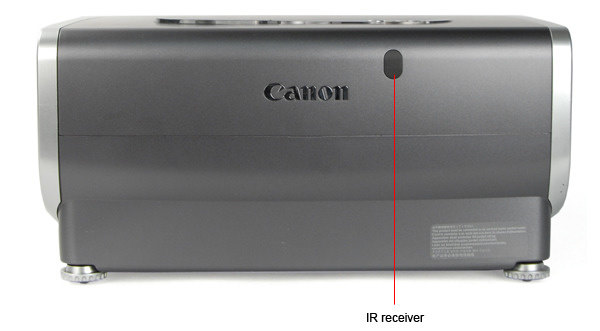

Back

Back Callout
Advertisement - Continue Reading Below

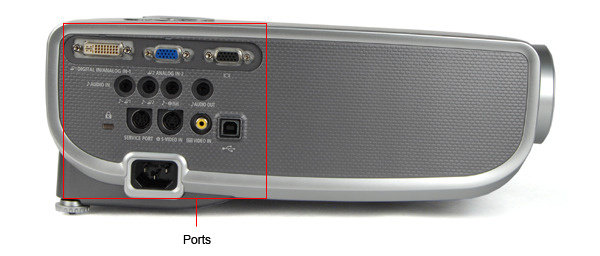

Sides

Side Callout

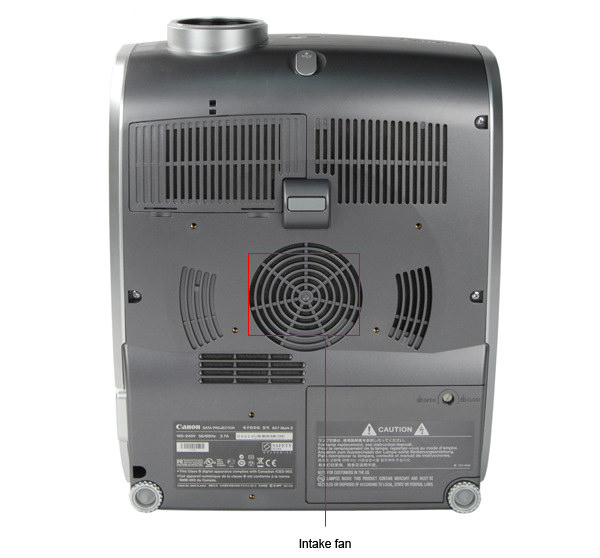

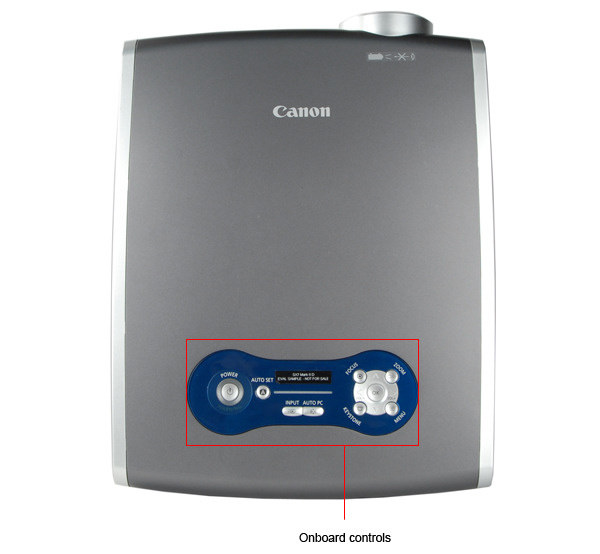

Top/Bottom

Top Callout
Bottom Callout

Stand/Mount

The Canon SX7 Mark II has a small foot towards the front-bottom that adjusts up and down about 1.5 inches. The projector can, of course, also be permanently mounted, by way of several screw holes on the bottom.

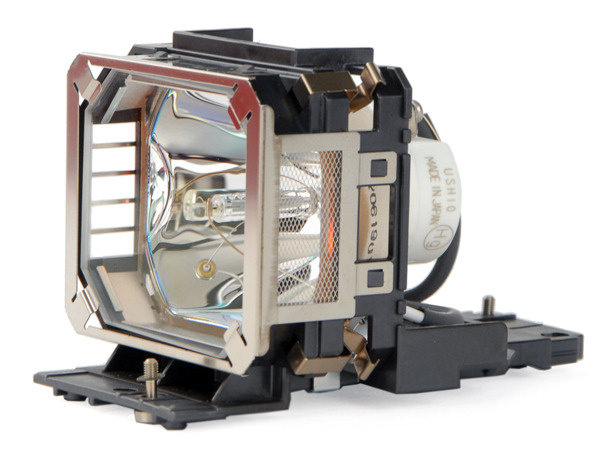

Lamp

The Canon SX7 Mark II uses a 275 watt NSH mercury lamp, rated for 2000 / 3000 hours of use (the latter being in "Quiet mode"). Model name RS-LP04, the lamp can be replaced by Canon for a pricy $579.

Lamp Photo 1

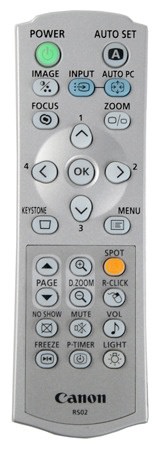

Remote Control Tour

Remote Control Image

In the Box

The Canon SX7 Mark II comes with a lot of cables to get you started.
* Carrying case

* Remote control

* Batteries for remote control

* DVI-to-VGA cable

* USB cable

* Component video-to-VGA cable

* AC power cord

* Lens cap and strap

* User's manual and other documentation

In The Box

Setup Assistance

Setting up the Canon SX7 Mark II could not be easier: plug in the power and input cable, aim it at the wall, and hit the "Auto Set" button. The projector uses a built-in camera located on the front of the projector to analyze the projection surface and make the best color, contrast, brightness, and keystone settings. The results are remarkably accurate.

Aesthetics

The Canon SX7 Mark II is a large rectangle with a blindingly bright light shooting out of the front. That said, it's attractive for a projector. The lines are clean and smooth, tapered where possible to make it look less... like a large rectangle with light shooting out the front.
